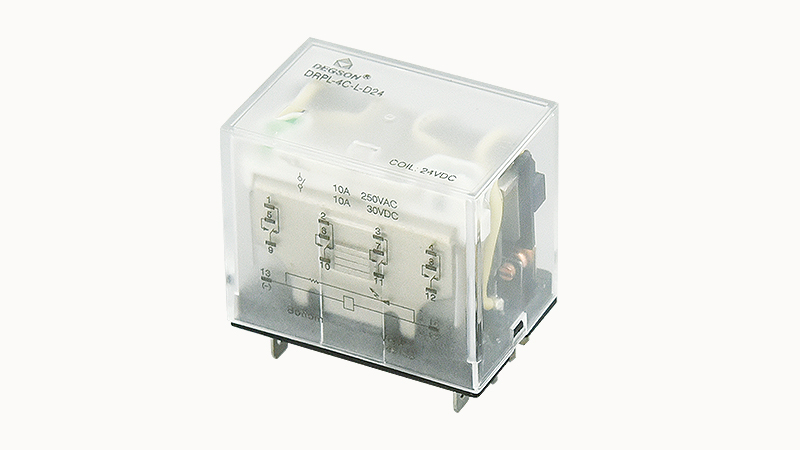

Images are for reference only
DEGSON Single relay-DRPL-4C-L-A220-02A(H)
Single relay-DRPL-4C-L-A220-02A(H)
FCG-Single relay-DRPL-4C-L-A220-02A(H)
Request Free Samples
heavy currentpower relay,four changeover contact,with indicator light,input voltage :220VAC
In Stock Min：1 Mult：1
Price not available? Please fill in the information below to submit your RFQ quickly, and we will respond promptly.
United States
China
Canada
Japan
Russia
Germany
United Kingdom
Singapore
Italy
Hong Kong(China)
Taiwan(China)
France
Korea
Mexico
Netherlands
Malaysia
Austria
Spain
Switzerland
Poland
Thailand
Vietnam
India
United Arab Emirates
Afghanistan
Åland Islands
Albania
Algeria
American Samoa
Andorra
Angola
Anguilla
Antigua & Barbuda
Argentina
Armenia
Aruba
Australia
Azerbaijan
Bahamas
Bahrain
Bangladesh
Barbados
Belarus
Belgium
Belize
Benin
Bermuda
Bhutan
Bolivia
Bonaire, Sint Eustatius and Saba
Bosnia & Herzegovina
Botswana
Brazil
British Indian Ocean Territory
British Virgin Islands
Brunei
Bulgaria
Burkina Faso
Burundi
Cabo Verde
Cambodia
Cameroon
Cayman Islands
Central African Republic
Chad
Chile
Christmas Island
Cocos (Keeling) Islands
Colombia
Comoros
Congo
Congo (DRC)
Cook Islands
Costa Rica
Côte d’Ivoire
Croatia
Cuba
Curaçao
Cyprus
Czechia
Denmark
Djibouti
Dominica
Dominican Republic
Ecuador
Egypt
El Salvador
Equatorial Guinea
Eritrea
Estonia
Eswatini
Ethiopia
Falkland Islands
Faroe Islands
Fiji
Finland
French Guiana
French Polynesia
Gabon
Gambia
Georgia
Ghana
Gibraltar
Greece
Greenland
Grenada
Guadeloupe
Guam
Guatemala
Guernsey
Guinea
Guinea-Bissau
Guyana
Haiti
Honduras
Hungary
Iceland
Indonesia
Iran
Iraq
Ireland
Isle of Man
Israel
Jamaica
Jersey
Jordan
Kazakhstan
Kenya
Kiribati
Kosovo
Kuwait
Kyrgyzstan
Laos
Latvia
Lebanon
Lesotho
Liberia
Libya
Liechtenstein
Lithuania
Luxembourg
Macao(China)
Madagascar
Malawi
Maldives
Mali
Malta
Marshall Islands
Martinique
Mauritania
Mauritius
Mayotte
Micronesia
Moldova
Monaco
Mongolia
Montenegro
Montserrat
Morocco
Mozambique
Myanmar
Namibia
Nauru
Nepal
New Caledonia
New Zealand
Nicaragua
Niger
Nigeria
Niue
Norfolk Island
North Korea
North Macedonia
Northern Mariana Islands
Norway
Oman
Pakistan
Palau
Palestinian Authority
Panama
Papua New Guinea
Paraguay
Peru
Philippines
Pitcairn Islands
Portugal
Puerto Rico
Qatar
Réunion
Romania
Rwanda
Samoa
San Marino
São Tomé & Príncipe
Saudi Arabia
Senegal
Serbia
Seychelles
Sierra Leone
Sint Maarten
Slovakia
Slovenia
Solomon Islands
Somalia
South Africa
South Sudan
Sri Lanka
St Helena, Ascension, Tristan da Cunha
St. Barthélemy
St. Kitts & Nevis
St. Lucia
St. Martin
St. Pierre & Miquelon
St. Vincent & Grenadines
Sudan
Suriname
Svalbard & Jan Mayen
Sweden
Syria
Tajikistan
Tanzania
Timor-Leste
Togo
Tokelau
Tonga
Trinidad & Tobago
Tunisia
Turkey
Turkmenistan
Turks & Caicos Islands
Tuvalu
U.S. Outlying Islands
U.S. Virgin Islands
Uganda
Ukraine
Uruguay
Uzbekistan
Vanuatu
Vatican City
Venezuela
Wallis & Futuna
Yemen
Zambia
Zimbabwe
Add to RFQ List
Add to RFQ List
100% Original & New
24 Hours ready to ship
365 Days Warranty
RFQ & Get more DiscountsWhile registration is not a prerequisite for placing an order with Richard Electronics, we strongly recommend you to sign in before proceeding with your purchase.
This will enable you to track your order status in real time, ensuring a smooth shopping experience.
Payment OptionsTo accommodate your needs, we accept various payment methods in USD, including PayPal, Credit Card, and Wire Transfer. Choose the one that best suits your convenience.
Request for Quotations (RFQ)We encourage you to submit a Request for Quotations to stay informed about the latest prices and inventory status.
Our dedicated sales team will respond to your request via email within a 24-hour window, keeping you updated at every step.
Important InformationBe aware that an email containing your order details will be sent to your inbox. If you don't receive it, we recommend checking your spam folder.
Please note that due to possible fluctuations in prices and inventories, our sales manager will reconfirm your order and provide any necessary updates. This is to ensure transparency and accuracy throughout your purchasing process.
View More
Technical Specifications
- TypeParameterSelect All
Ambient temperature (operation)
-25 °C ... 55 °C
Ambient temperature (storage/transportation)
-25 °C ... 55 °C
environment humidity
35%~85%RH
Rated input voltage UN
220VAC
Typical input current under UN
13.6mA
CoilResistance
5647Ω
Reset voltage
≥30%
Maximum allowable voltage
1.1
Power consumption under rated conditions
2.5VA
Maximum contact voltage
AC240V DC28V
Maximum contact current
10A
Contact composition
4C
Contact mechanism
single
Contact Materials
Ag alloy
Action time
<20ms
Reset time
<20ms
Maximum switching frequency (mechanical)
18000 times/h
Maximum switching frequency (rated load)
1800 times/h
Withstand voltage (between coil and contact)
1500VAC/1min
Withstand voltage (between different pole contacts)
1000VAC/1min
Withstand voltage (between contacts of the same pole)
1000VAC/1min
Shock proof
10G
Vibration resistant
10-55Hz
ElectricalLife
>1×105
Standards/Regulations
IEC 61810-1 IEC 60664
Protection level
IP50
Pollution level
3
Overvoltage category
Ⅲ
Test voltage relay coil/relay contact
1500VAC/1min
Test voltage PDT/PDT
1000VAC/1min
Operation mode
100% work factor
Installation location
Arbitrary
Relay socket
DPTF14A-3-02A(H)
Packing unit
20
Products weight (without packaging)
80
Contact resistance
≤100mΩ
Insulation resistance
≥100MΩ
Mechanical life
>1×107
insulation
Basic isolation
Operating voltage
≤80%
length
41.5mm
width
28mm
Height
36mm
