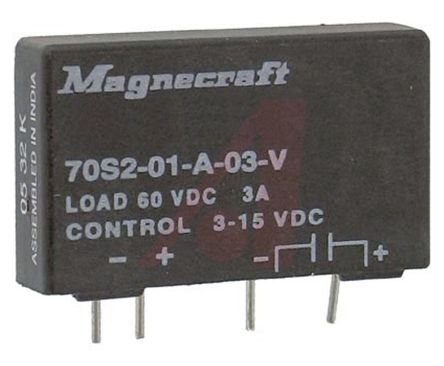

Schneider Electric 70S2-01-A-03-V
70S2-01-A-03-V
BACB-70S2-01-A-03-V
SIP
Request Free Samples
Relay Ssr 40MA 15V Dc-in 3A 60V Dc-out 4-PIN Sip
In Stock Min：1 Mult：1
Price not available? Please fill in the information below to submit your RFQ quickly, and we will respond promptly.
United States
China
Canada
Japan
Russia
Germany
United Kingdom
Singapore
Italy
Hong Kong(China)
Taiwan(China)
France
Korea
Mexico
Netherlands
Malaysia
Austria
Spain
Switzerland
Poland
Thailand
Vietnam
India
United Arab Emirates
Afghanistan
Åland Islands
Albania
Algeria
American Samoa
Andorra
Angola
Anguilla
Antigua & Barbuda
Argentina
Armenia
Aruba
Australia
Azerbaijan
Bahamas
Bahrain
Bangladesh
Barbados
Belarus
Belgium
Belize
Benin
Bermuda
Bhutan
Bolivia
Bonaire, Sint Eustatius and Saba
Bosnia & Herzegovina
Botswana
Brazil
British Indian Ocean Territory
British Virgin Islands
Brunei
Bulgaria
Burkina Faso
Burundi
Cabo Verde
Cambodia
Cameroon
Cayman Islands
Central African Republic
Chad
Chile
Christmas Island
Cocos (Keeling) Islands
Colombia
Comoros
Congo
Congo (DRC)
Cook Islands
Costa Rica
Côte d’Ivoire
Croatia
Cuba
Curaçao
Cyprus
Czechia
Denmark
Djibouti
Dominica
Dominican Republic
Ecuador
Egypt
El Salvador
Equatorial Guinea
Eritrea
Estonia
Eswatini
Ethiopia
Falkland Islands
Faroe Islands
Fiji
Finland
French Guiana
French Polynesia
Gabon
Gambia
Georgia
Ghana
Gibraltar
Greece
Greenland
Grenada
Guadeloupe
Guam
Guatemala
Guernsey
Guinea
Guinea-Bissau
Guyana
Haiti
Honduras
Hungary
Iceland
Indonesia
Iran
Iraq
Ireland
Isle of Man
Israel
Jamaica
Jersey
Jordan
Kazakhstan
Kenya
Kiribati
Kosovo
Kuwait
Kyrgyzstan
Laos
Latvia
Lebanon
Lesotho
Liberia
Libya
Liechtenstein
Lithuania
Luxembourg
Macao(China)
Madagascar
Malawi
Maldives
Mali
Malta
Marshall Islands
Martinique
Mauritania
Mauritius
Mayotte
Micronesia
Moldova
Monaco
Mongolia
Montenegro
Montserrat
Morocco
Mozambique
Myanmar
Namibia
Nauru
Nepal
New Caledonia
New Zealand
Nicaragua
Niger
Nigeria
Niue
Norfolk Island
North Korea
North Macedonia
Northern Mariana Islands
Norway
Oman
Pakistan
Palau
Palestinian Authority
Panama
Papua New Guinea
Paraguay
Peru
Philippines
Pitcairn Islands
Portugal
Puerto Rico
Qatar
Réunion
Romania
Rwanda
Samoa
San Marino
São Tomé & Príncipe
Saudi Arabia
Senegal
Serbia
Seychelles
Sierra Leone
Sint Maarten
Slovakia
Slovenia
Solomon Islands
Somalia
South Africa
South Sudan
Sri Lanka
St Helena, Ascension, Tristan da Cunha
St. Barthélemy
St. Kitts & Nevis
St. Lucia
St. Martin
St. Pierre & Miquelon
St. Vincent & Grenadines
Sudan
Suriname
Svalbard & Jan Mayen
Sweden
Syria
Tajikistan
Tanzania
Timor-Leste
Togo
Tokelau
Tonga
Trinidad & Tobago
Tunisia
Turkey
Turkmenistan
Turks & Caicos Islands
Tuvalu
U.S. Outlying Islands
U.S. Virgin Islands
Uganda
Ukraine
Uruguay
Uzbekistan
Vanuatu
Vatican City
Venezuela
Wallis & Futuna
Yemen
Zambia
Zimbabwe
Add to RFQ List
Add to RFQ List
100% Original & New
24 Hours ready to ship
365 Days Warranty
RFQ & Get more DiscountsWhile registration is not a prerequisite for placing an order with Richard Electronics, we strongly recommend you to sign in before proceeding with your purchase.
This will enable you to track your order status in real time, ensuring a smooth shopping experience.
Payment OptionsTo accommodate your needs, we accept various payment methods in USD, including PayPal, Credit Card, and Wire Transfer. Choose the one that best suits your convenience.
Request for Quotations (RFQ)We encourage you to submit a Request for Quotations to stay informed about the latest prices and inventory status.
Our dedicated sales team will respond to your request via email within a 24-hour window, keeping you updated at every step.
Important InformationBe aware that an email containing your order details will be sent to your inbox. If you don't receive it, we recommend checking your spam folder.
Please note that due to possible fluctuations in prices and inventories, our sales manager will reconfirm your order and provide any necessary updates. This is to ensure transparency and accuracy throughout your purchasing process.
View More
Technical Specifications
- TypeParameterSelect All
Package / Case
Mount
DIN Rail, PCB, Panel, Through Hole
Mounting Type
Through Hole
Number of Pins
4
Supplier Device Package
4-SIP
Voltage Rating (DC)
60 V
Package
Box
Mfr
Schneider Electric
Product Status
Obsolete
Voltage-Input
3 ~ 15VDC
Input Polarity
DC
Manufacturer Part Number
PS714201EM
Manufacturer
Schneider Electric
Mounting
PCB
Minimum Operating Temperature
-40°C
Control Voltage Range
3 → 15 V dc
Output Device
MOSFET
Maximum Operating Temperature
+100°C
Dimensions
43.2 x 10.2 x 26mm
Standards Met
RoHS Compliant
Switching Mode
Zero Crossing
Unit Weight
0.881849 oz
Factory Pack QuantityFactory Pack Quantity
10
Mounting Styles
PCB Mount
Brand
Schneider Electric Relays
RoHS
Details
Series
Termination
Solder
Type
Max Operating Temperature
100 °C
Min Operating Temperature
-40 °C
Subcategory
Relays
Depth
10.2 mm
Current Rating
3 A
Termination Style
PC Pin
Approval Agency
CSA, TUV, UL
Output Voltage
3-60 VDC
Output Type
DC
Max Output Current
3 A
Operating Supply Voltage
60 V
Circuit
SPST-NO (1 Form A)
Number of Circuits
1
Max Supply Voltage
60 V
Min Supply Voltage
3 V
Output Current
3 A
Throw Configuration
SPST
Turn On Delay Time
75 ms
Max Output Voltage
60 V
Contact Form
SPST (1 Form A)
Relay Type
Solid State Relay
Terminal Type
PCB Pin
Product Type
SSR - Solid State Relays
Operating Temperature Range
-40 → +100°C
Voltage - Load
3 V ~ 60 V
Nominal Output Voltage
3.3 VDC, 6 VDC, 12 VDC, 24 VDC, 48 VDC, 60 VDC
Input Current
40 mA
Load Current
3 A
Max Supply Voltage (DC)
60 V
Min Supply Voltage (DC)
3 V
Input Signal
3-15 VDC
Contact Configuration
SPST
Product
Solid State Relays
Product Category
Solid State Relays - PCB Mount
Height
26 mm
Length
43.2 mm
Width
10.2 mm
RoHS Status
